KUBOTA G231 Diesel Ride-on Mower
Protect your Kubota with Kubota Care – flexible service packages for long-term reliability. Contact us to learn more.
The Kubota G231 ride-on lawnmower excels in large-scale applications with a 122 cm cutting deck, adjustable speed, and comfort features like cruise control for effortless operation.
This machine will be run and tested, and delivered fully assembled by our own team who will ensure you know how to use it. This service is free within 100 miles of WR5 1HF; for delivery outside of this area, please contact us prior to ordering or we will contact you after to quote for delivery.
About the KUBOTA G231 Diesel Ride-on Mower
The Kubota G231 is a key member of the new G-Series, tailored for high-performance, comfort, and ease in large-scale lawn care.
High-Performance Lawn Care for Large Spaces
The Kubota G231 is perfect for commercial use on expansive and challenging terrains, it also appeals to private landowners seeking a professional mowing experience.
Superior Cutting Capabilities
Equipped with a robust 122 cm (48 inch) cutting deck, the G231 excels in various grass conditions, including tall, dense, and wet grass. It efficiently covers up to one hectare per hour with adjustable cutting heights ranging from 25 mm to 102 mm via a user-friendly dial gauge.
Flexible Collection Options

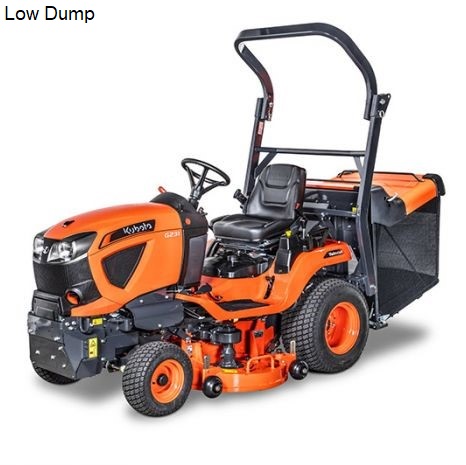

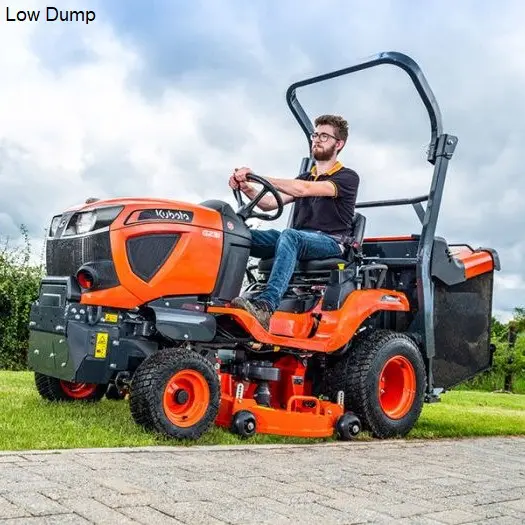

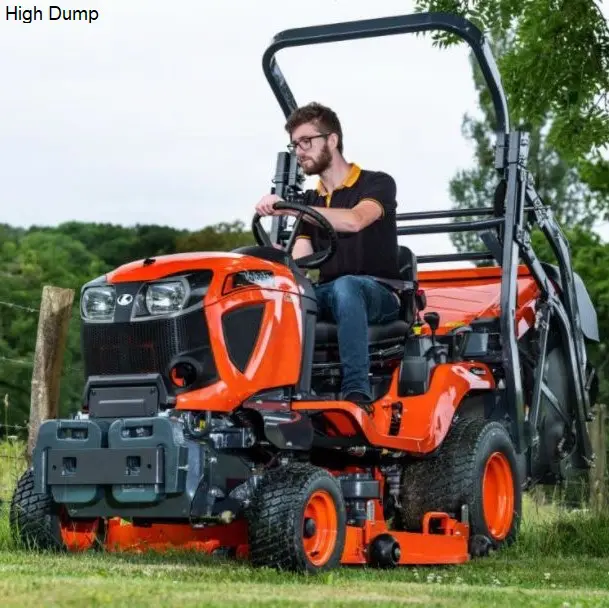

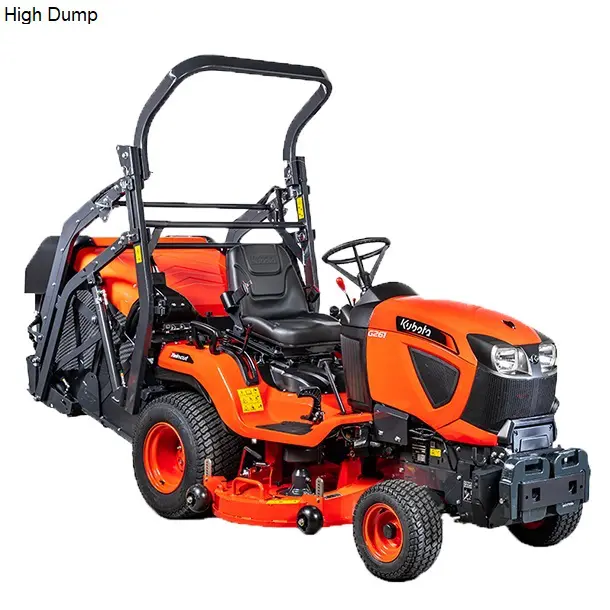

The mower offers two types of grass collectors: a 560-litre low dump and a 640-litre high dump, both designed for operational efficiency. The high dump collector allows emptying from a height of up to 1970 mm, completing the cycle in less than 15 seconds. Both options enable emptying directly from the operator’s seat, streamlining the process and enhancing productivity.
Designed for Daily Durability
With speeds up to 19 km/h forward and 6 km/h reverse, controlled by a single pedal, the G231 promises smooth and fast operation. It’s powerful 898 cm3 diesel engine and hydrostatic gearbox ensure swift movement, while the electromagnetic PTO clutch delivers consistent power to the cutting deck. An optional homologation kit is available to make the G231 road-legal.
Optimized Operator Comfort
The G231 features a Kross control joystick for easy access to essential controls, including the PTO clutch and grass collector. Cruise control offers relaxed operation over vast areas without constant pedal engagement. Adjustable steering and easy-access maintenance points under the one-piece bonnet ensure the G231 is both comfortable and simple to upkeep, making it a reliable choice for extensive lawn maintenance tasks.
Take a Closer Look at the Kubota G Series
KUBOTA G231 Diesel Ride-on Mower Technical Information
Engine & Performance
- Engine: Kubota D902
- Engine Type: Water-cooled, 3-cylinder diesel
- Displacement: 898 cm³
- Max Engine Power: 16 kW (22 hp)
- Rated Speed: 3,240–3,390 rpm
- Fuel Tank Capacity: 20 L
Transmission & Drive
- Transmission Type: Hydrostatic
- Max Forward Speed: 19.0 km/h
- Differential Lock: Standard
- Cruise Control: Standard
- Speed Control: Forward/reverse via single pedal
Wheels & Brakes
- Front Tyres: 16 × 7.5-8 (turf)
- Rear Tyres: 24 × 12.0-12 (turf)
- Brakes: Wet disc
Steering
- Steering Type: Hydraulic power steering
Dimensions & Weight
- Wheelbase: 1,390 mm
- Front Track Width: 900 mm
- Rear Track Width: 840 mm
- Overall Length (with collector): 3,100 mm
- Overall Width (with mower): 1,265 mm
- Height to Top of Steering Wheel: 2,205 mm
- Weight (with mower & collector): 815–955 kg
- Ground Clearance: 175 mm
Features
- PTO: Cardan shaft drive
- Coupling: Electromagnetic
- Coolant Temperature Gauge: Standard
- Overheating Alarm: Standard
- Fuel Gauge: Standard
- Hour Meter / Tachometer: Standard
- Easy Checker: Standard
Mower Deck
- Deck Model: RCK48-G231
- Cutting Width: 121.9 cm (48″)
- Blade Drive: Gear driven
- Lift System: Hydraulic
- Cutting Height Range: 25–102 mm (1.0″–4.0″)
- Height Adjustment: Dial
- Number of Blades: 2
- Blade Length: 673 mm
Grass Collection
- Collector Capacity (HD / LD): 640 / 560 L
- Dump Height (HD): 1,970 mm
- Collector Sensor: Weight sensor
- Collector Material (HD / LD): Metal / Textile
