This machine will be run and tested, and delivered fully assembled by own our team who will ensure you know how to use it. This service is free within 100 miles of WR5 1HF; for delivery outside of this area, please contact us prior to ordering or we will contact you after to quote for delivery.

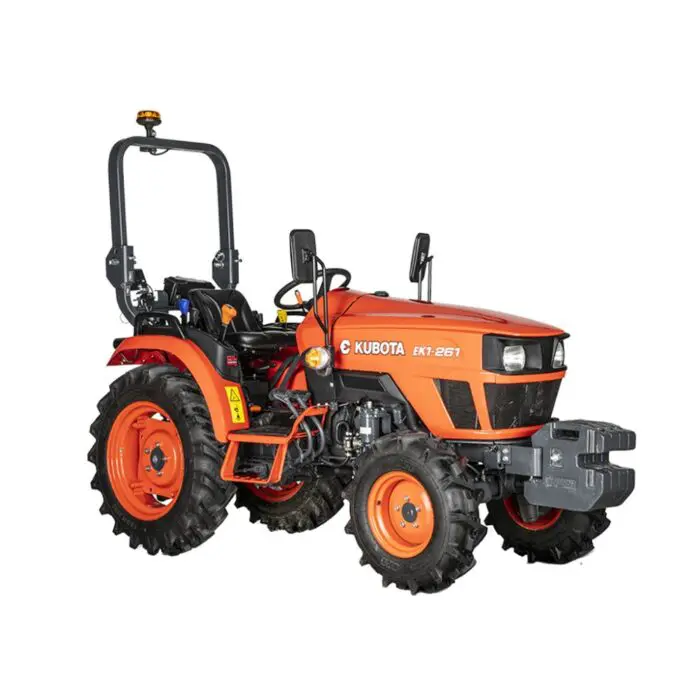

About the KUBOTA EK1-261 4WD Compact Tractor
A versatile and compact tractor by Kubota, built for excellent productivity and used on a multitude of jobs.
The EK1-261 with its 3-cylinder, 4 stroke engine is reliable and high performing.
The Kubota EK1-261 tractor is equipped with a 3-cylinder 24 hp Stage V, 4-stroke diesel engine, renowned for its reliability and strength to deliver exceptional performance and is ideal for use on a variety of jobs ranging from landscaping, mowing to a variety of agricultural jobs.
Benefitting from a heavy-duty air filtration system; the EK1-261 tractor ensures excellent fuel efficiency whilst also enhancing engine performance. Furthermore; when the air filter requires emptying; the EK1-261 is equipped with a sensor which notifies the user.
The EK1-261 tractor can adapt easily.
With a range of different tractor speeds to choose from; the EK1-261 tractor can adapt to a variety of landscapes and the requirements of the job at hand. Furthermore; the user can activate the all-wheel drive feature easily via a lever.
A user-friendly experience whilst using the EK1-261 tractor.
Featuring a mechanical transmission; the Kubota EK1-261 tractor ensures a comfortable and easy drive for the user. Thanks to a transmission system; the user is able to shift gears whilst driving and with the three-range transmission; the risk of overloading the torque is eliminated.
Built with the user in mind; the EK1-261 features ergonomic levers that are colour coded to avoid confusion, that are intuitively placed for easier access for the user. In addition; the EK1-261 also provides the user with a mobile phone charging point too.
Thanks to enhanced suspension that is adjustable to suit the operators weight; the EK1-261 tractor ensures optimal safety for the user whilst also providing a comfortable ride on the tractor. Furthermore, the tractor can sense whether the user is on the tractor and turns the engine off if the user is not present, further enhancing the safety aspect of using the tractor.
Choose the model with the desired tyres from the drop-down.
KUBOTA EK1-261 4WD Compact Tractor Technical Information
Engine
- Manufacturer: Mitsubishi
- Model: MV S3L2
- Emissions: 5 stage
- Cylinder: 3
- Displacement: 1318 cc
- Colling system: Water
- Power at rated engine speed: 24.4/18 hp/kW
- Rated speed: 2500 rpm
- Maximum torque: 76.3 Nm
- Fuel tank capacity: 24 litres
Transmission
- Type: Mechanical constant mesh
- Number of speeds: 9+3
- Speed minimum/ maximum: 1.0 / 18.2 km/h
Axles & brakes
- 4WD engagement: Mechanical
- Turning radium: 2,100 mm
- Differential lock rear axle: Yes
PTO
- Read PTO speed: 540/540E speed
- PTO type: Transmission driven direct
Hydraulic system & lift
- Hydraulic control system: Open center
- Fixed displacement pump: 20 l/min
- Auxiliary rear valve: 1 double acting valve (Standard)
- 3-point hitch: Cat. 1N
- Maximum lift capacity at hooks: 750 km
- Functions: Draft and position control
- Lift rod: Adjustable type-both sides
Dimensions and weights
- With front rear tyres: 6x 12 / 8,3 x 20
- Wheelbase: 1550 mm
- Ground clearance: 310 mm
- Height to steering wheel: 1300 mm
- Height to beacon light: 2192 mm
- Unladen weight with ROPS: 1000 kg
- Maximum permissible total weight: 1800 kg
