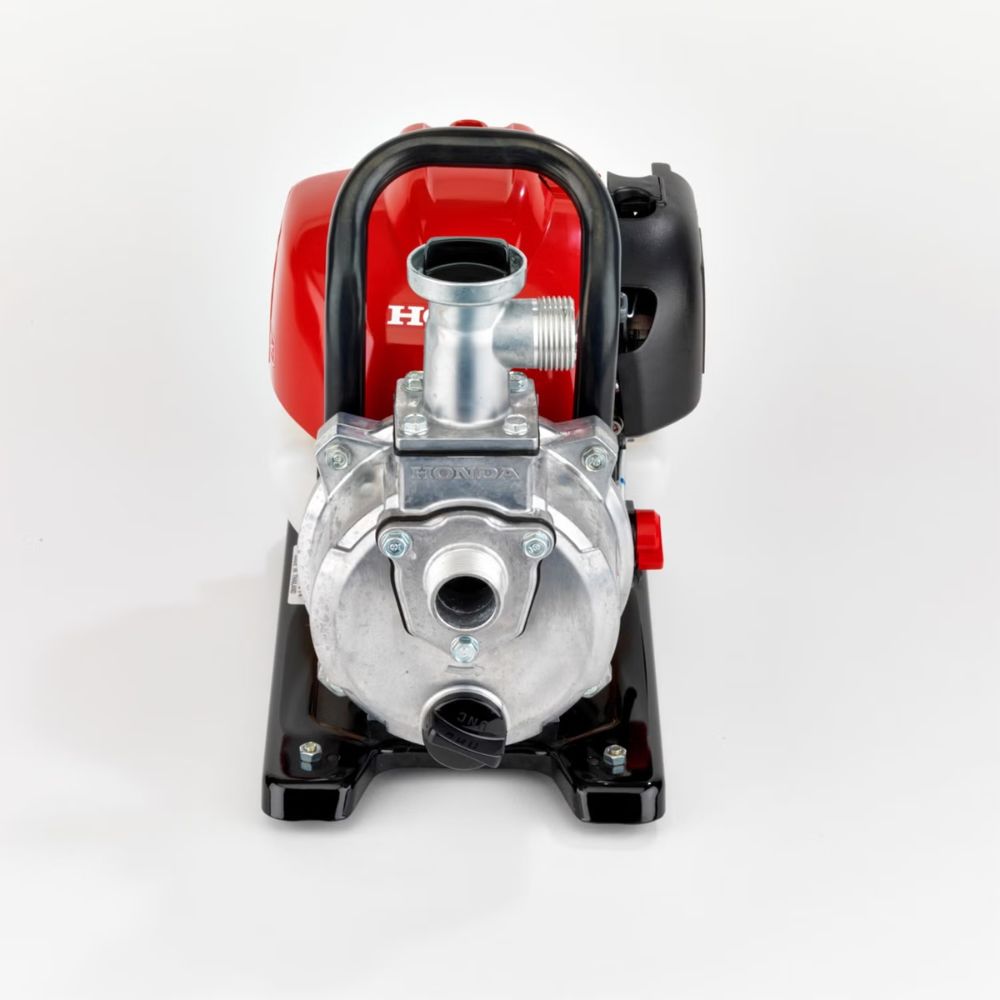

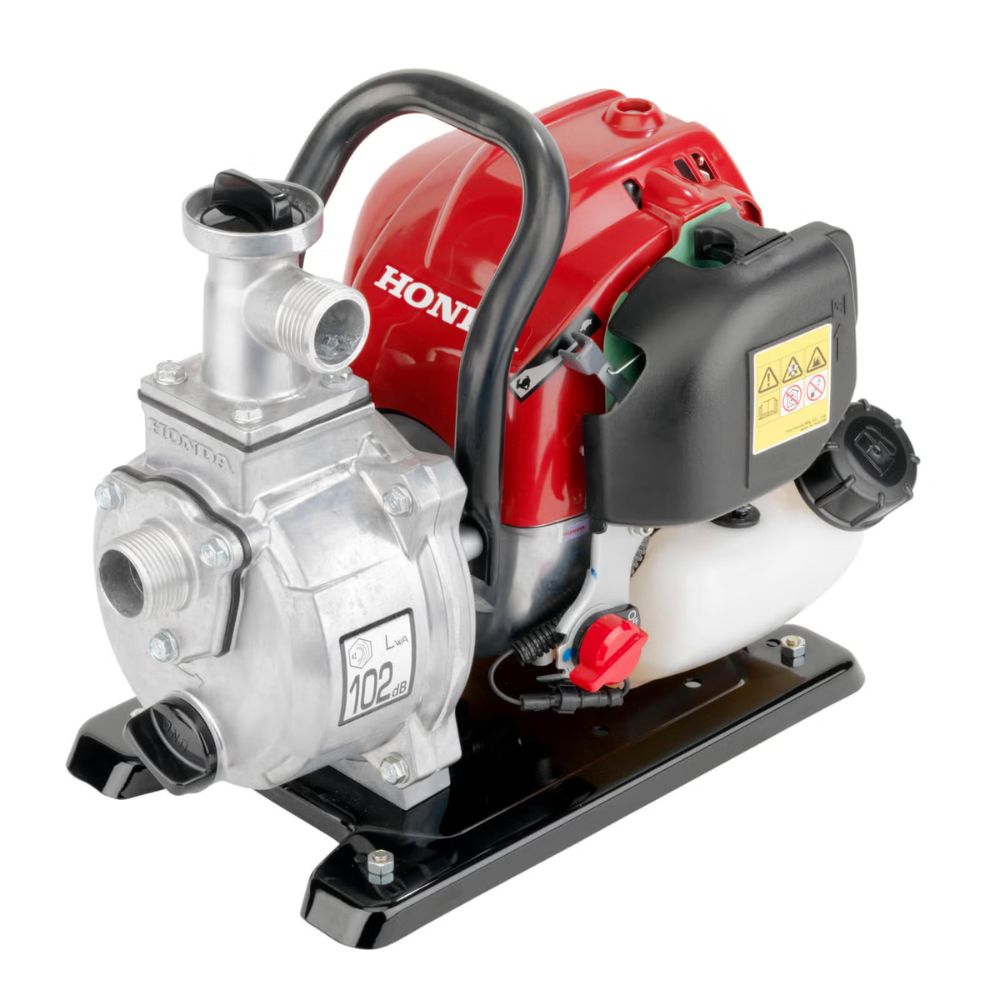

HONDA WX10 Petrol Portable Water Pump

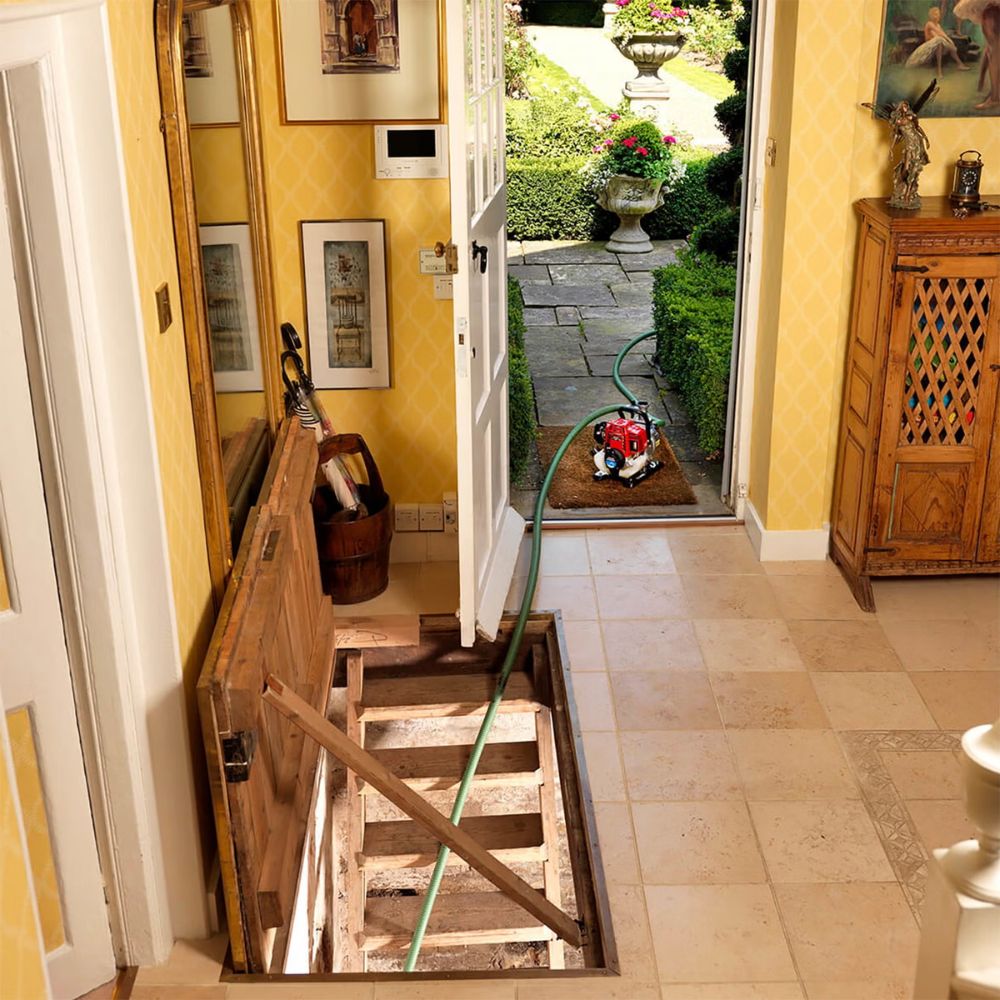

The Honda WX10 water pump combines outstanding performance with a space-saving design, making it ideal for various domestic applications. Whether you need to move water in the home, garden, or on a boat, this lightweight pump provides an impressive solution.

As the smallest model in Honda’s market-leading range of pumps, it is a convenient and highly effective option for handling water displacement efficiently.

Key Features of the Honda WX10 Petrol Water Pump

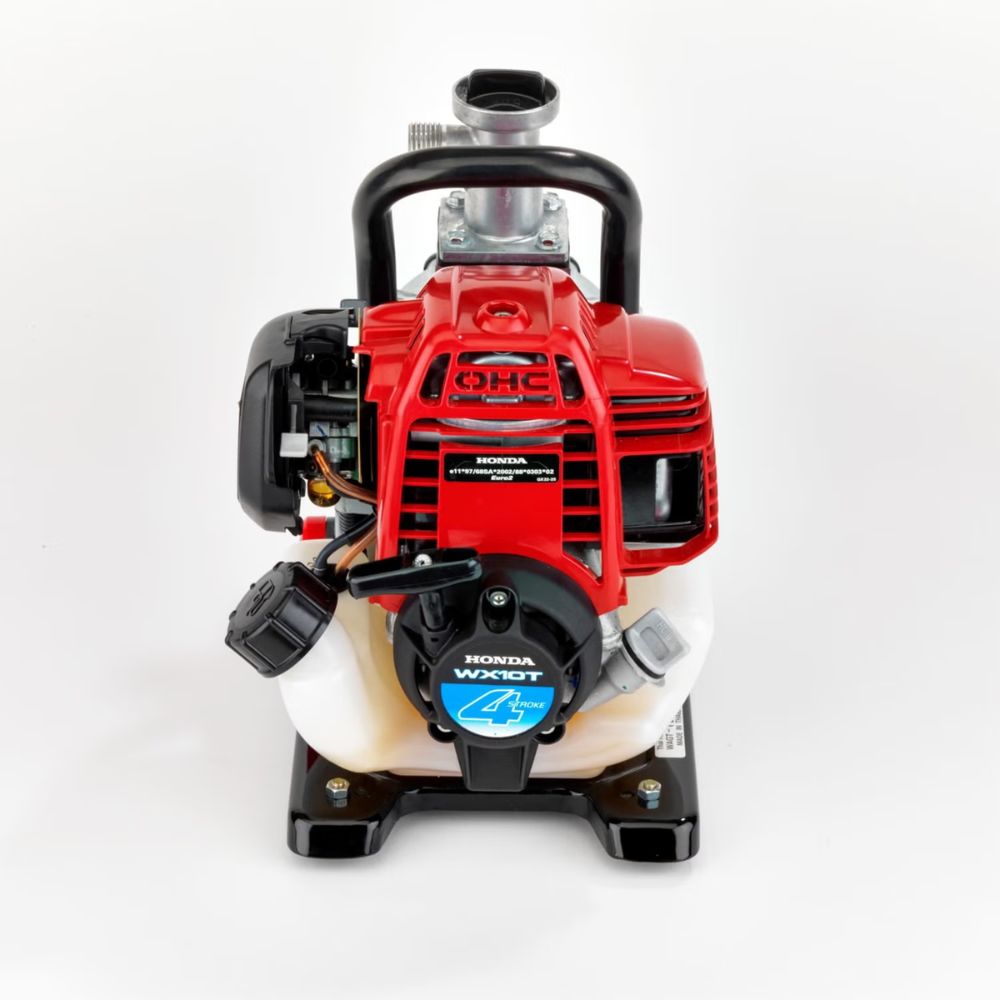

At the heart of the WX10 is a robust and efficient 4-stroke OHV GX25 engine, which has a displacement of 25 cm³ and delivers a net power output of 0.97 hp (0.72 kW). The design incorporates a reliable recoil start, transistor ignition, and advanced air cooling system.

Despite its compact size, this machine is capable of transferring up to 140 litres of water per minute. This makes it an excellent choice of pump for all kinds of domestic water pumping work.

Unrivalled Performance and Efficiency

Honda has developed this pump with superior hose seals and O-rings. These components prevent air from entering, which enhances the pump’s vacuum and maximises its flow rate. The result is an efficient system that can continue running for up to 1 hour and 20 minutes before requiring a fuel top-up.

Dependable and Easy to Start

Another major advantage of this machine is its reliable ignition system. With an automatic decompression feature, the engine requires minimal effort to start. Regardless of the conditions, the WX10 ensures a smooth start-up every time.

360-Degree Versatility

Yet another standout feature of the Honda WX10 Petrol Portable Water Pump is its ability to operate at any angle. Whether placed on an incline or in an awkward position, this pump functions without issues. Its full 360-degree operation ensures maximum adaptability in different working conditions.

Handling Water with Debris

This garden water pump is designed to process water containing debris up to 5.7 mm in size. This allows it to deal with small particles such as sand and silt, making it suitable for various drainage and irrigation tasks.

User-Friendly Design for Maximum Convenience

Ease of use is a priority with this model. It includes quick-release couplings for fast setup and shutdown, as well as an integrated carrying handle for effortless transportation. Once the task is complete, the pump can be packed away and stored with minimal fuss.

Technical Specifications

• Weight & Dimensions: Weighing just 6.1 kg, the WX10 has a compact structure measuring 32.5 cm (L) x 22 cm (W) x 30 cm (H).
• Fuel & Oil Capacity: The petrol tank holds 0.55 litres, while the oil reservoir has a 0.1-litre capacity.
• Pump Performance: This model boasts a total head height of 36 metres, an 8-metre suction head, and a pressure rating of 3.6 bar. The inlet and outlet diameter thread type is 25 mm (1 inch) PF.
• Noise Levels: The WX10 operates at a guaranteed sound power level of 102 dB(A), with a sound pressure level of 86 dB(A) at the operator’s position.

Trusted Honda Quality with Warranty Coverage

Honda is renowned worldwide for engineering high-quality machinery that is built to last. Investing in a Honda water pump ensures reliability and durability, giving you confidence in your purchase.

For even greater peace of mind, the Honda WX10 Petrol Portable Water Pump comes with a 2-year domestic warranty. If used professionally, the warranty covers 1 year.
