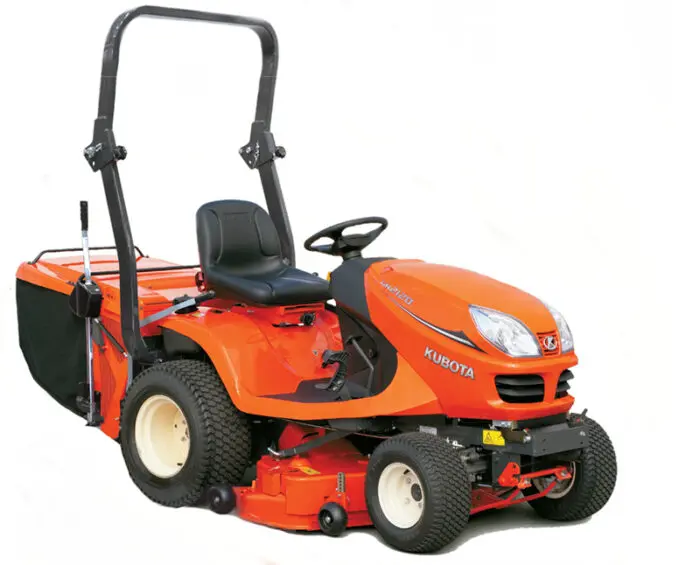

KUBOTA GR2120 Diesel Ride-on Mower
Protect your Kubota with Kubota Care – flexible service packages for long-term reliability. Contact us to learn more.
Kubota’s GR2120 is a powerful and versatile tractor that excels in a variety of conditions thanks to its all-wheel drive capabilities. Now fitted with foldable ROPS.
RRP: £17268
Our Price: £15,973.00 (inc VAT)
Only 2 left in stock online
Frequently bought together
Our Price: £333.00 (inc VAT)
This machine will be run and tested, and delivered fully assembled by our own team who will ensure you know how to use it. This service is free within 100 miles of WR5 1HF; for delivery outside of this area, please contact us prior to ordering or we will contact you after to quote for delivery.
About the KUBOTA GR2120 Diesel Ride-on Mower
The versatile all-wheel drive GR2120 excels in tough conditions.
Kubota’s GR2120 is designed for home and estate owners who require a diesel tractor capable of handling a wider and more demanding range of grass cutting conditions. It is now also fitted with a foldable ROPS.
Superb levels of power
The new semi-professional Kubota GR2120 tractors are 21 hp, three cylinder diesel engine machines boasting a number of performance enhancing features over the smaller GR1600.
Outstanding traction across all surfaces
These include all-wheel drive for outstanding traction across all surfaces, wet and dry, together with enhanced safety on slopes. These tractors also have Kubota’s revolutionary Glide Steer system which cuts power automatically to the inside rear wheel when the turning angle reaches 70 degrees. By allowing the inner wheel to spin freely while the outer wheel powers the mower through its turn, damage to the grass is avoided while the mower continues cutting effortlessly and tightly around trees, posts and other obstacles. When the turn is completed, drive is restored automatically to all four wheels. The extremely tight turning circle provided by Glide Steer on full lock produces an uncut circle of grass measuring just 110 cm, a very impressive figure for a machine with four driven wheels.
Excellent cutting performance
Other features unique to the semi-professional GR2120 include a 1.22 m (48″) width of cut from three rotating blades, a hydraulically-powered deck lift, power steering, a 450 litre capacity grass collector and suspension seat. The latest version of the GR2120 also includes a foldable ROPS.
KUBOTA GR2120 Diesel Ride-on Mower Technical Information
Engine
- Model: Kubota D782
- Type: 3-cylinder, diesel, water-cooled
- Total displacement: 778 cm³
- Gross power: 15.6 kW
- Maximum operating speed: 3,100 – 3,250 rpm
- Engine layout: Horizontal
- Fuel tank capacity: 18 L
Dimensions
- Overall length (with grass collector): 2,880 mm
- Overall width (with mower): 1,280 mm
- Overall height (with ROPS up): 2,030 mm
- Wheelbase: 1,260 mm
- Tread (front/rear): 825 / 820 mm
- Weight (with mower, grass collector, and fuel): 545 kg
Tyres
- Front / Rear: 16 × 7.5 – 8 / 23 × 10.5 – 12
Transmission
- Type: Hydrostatic transmission
- Drive system: Shaft drive
- Speed control: Single foot pedal
- Front-wheel drive: Glide Steer
- Travel speed (forward/reverse): 0 – 9.0 / 0 – 5.0 km/h
- Brakes & PTO
- Brake: Internal expanding brake
- PTO clutch: Hydraulic wet multi-discs
- Mower Deck Drive
- Type: U-joint shaft
Steering & Operator Features
- Steering system: Glide Steer (fully hydraulic power steering)
- Operator’s deck: Flat
- Seat adjustment: Slide
- Seat suspension: Parallel linkage
- Fuel gauge: Standard
- Hour meter: Standard
- Easy checker system: Standard
- Travel OPC: Standard
- Mower OPC: Standard
- Blade shut-off brake: Built-in clutch
- ROPS: Foldable
Grass Collector
- Capacity: 450 L
- Dumping system: Manual
- Material: Fabric / Steel
Optional Accessories
- Cruise control (contact us to order)
- Rear deflector
Mower Specifications
- Cutting width: 121.9 cm (48 in)
- Mower system: Direct chute
- Mower blade drive: V-belt / hexagonal belt
- Lifting device: Hydraulic
- Mower mounting method: Quick attach
- Cutting height: 25 – 102 mm
- Cutting height adjustment: Dial
- Cutting height positions: 11
- Number of blades: 3
- Direction of rotation: 2 clockwise (viewed from operator), 1 counter-clockwise
- Minimum uncut diameter: 1.0 m
- Mower deck ground clearance: 135 mm
